PRODUCT ADVANTAGES
Stand-Up Support BC65

  • Simplified model to R2D2
  • excellent price-performance ratio
  • For wall or stand toilets
  • Relief for families and / or nursing staff
  • infinitely variable electronic height and inclination adjustment
  • Accessible fixed or movable handles
  • Operation via remote control
  • Version with / without bidet
  • no installation effort, modular design, small footprint
  • easy cleaning and maintenance

informationspecificationscomposition alternativesdownload

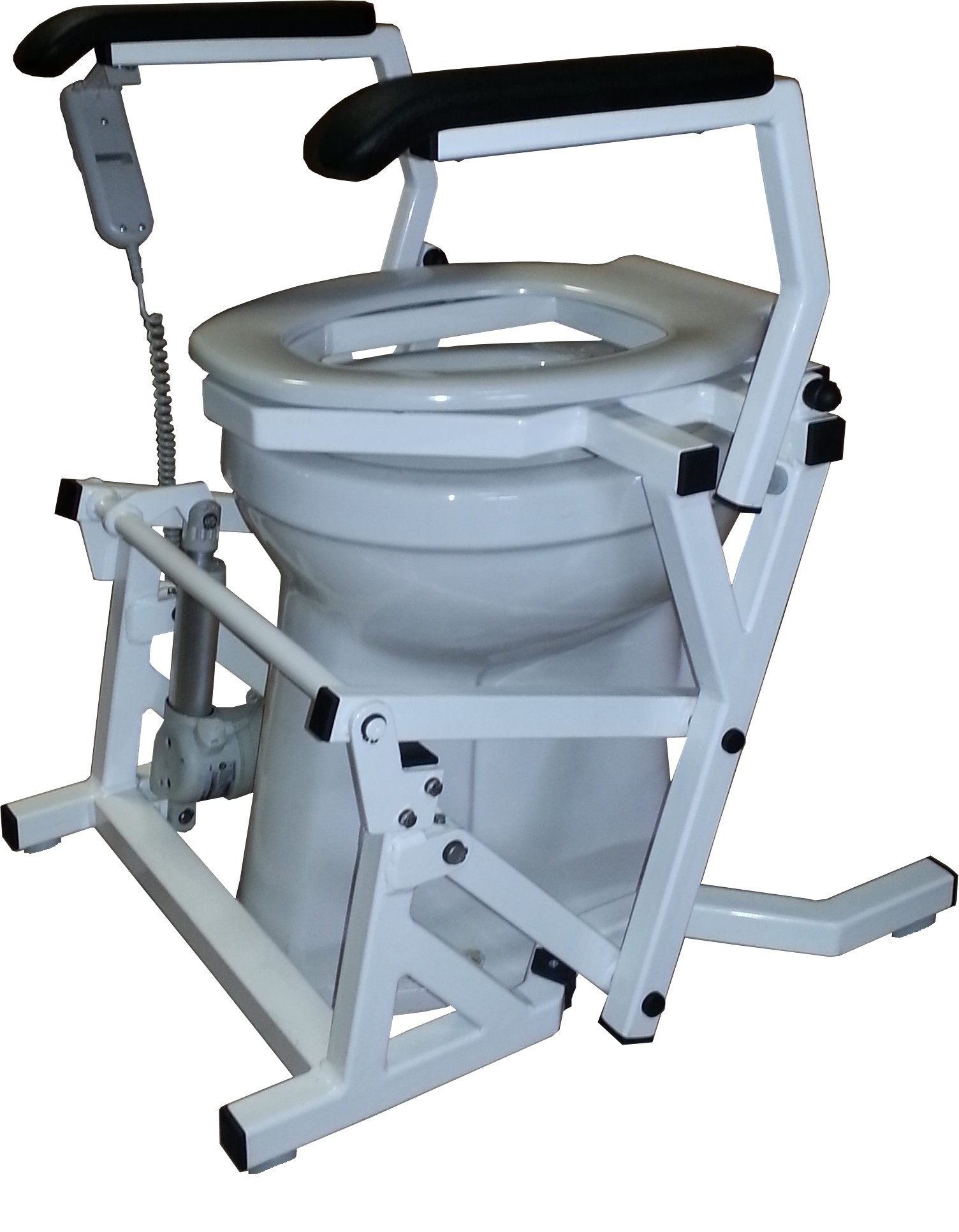

Stand-Up Support BC65

The simplified version to the R2D2 device

Stand up assist for independent toilet use – for people who are restricted in their mobility because of age or physical disability.

Bewegungsablauf

Alternative with excellent value for money

As an alternative to the Stand-Up Support R2D2 we recommend the BC65. With the reduced design, the BC65 includes all basic features of the R2D2 – giving it a brilliant price-performance ratio.

Stand-Up Support BC65 – easy use at home and care facility

The Stand-Up Support BC65 is very easy to use and guarantees independent and effortless movements by adjusting the height and the spring-loaded hinged handles. In the care sector, the stand up support provides not only relief to the patients, but also facilitates the physical strain of the nursing staff and also saves time and money.

Preassembled delivery – individual adaptation depending on the location

Through the preassembled delivery, there is no installation effort and the device requires little space. The two types of Stand-Up Support R2D2 and BC65 are manufactured according to individual dimensions and adapted to all existing local conditions.

Stand-Up Support BC65

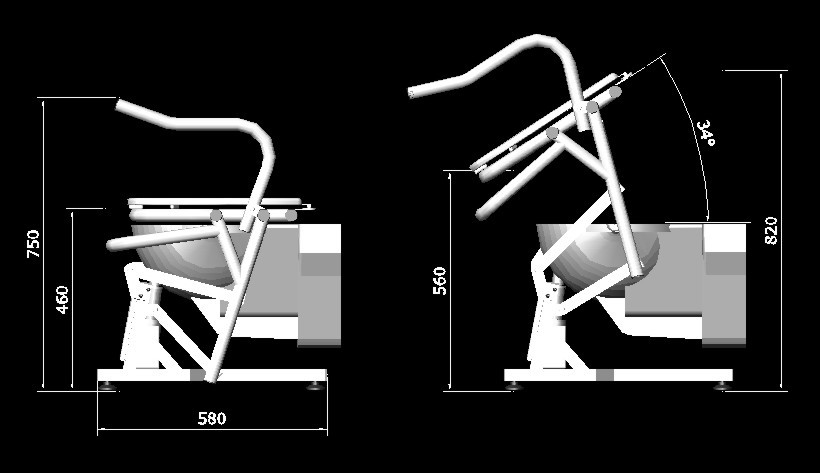

technical details - BC65

technical details – BC65

enigneering figures:

  • Max. Height: 460 – 820 mm
  • Width x depth: 555 x 580 mm
  • Inclination: up to 34°
  • Connection: 230V/50 Hz, 16A
  • Color: White
  • Drive control: 24VDC
  • Load: 150 Kg
Stand-Up Support BC65 - with bidet

Stand-Up Support BC65 – with bidet

Individual productions depending on the circumstances and location

Depending on your wishes and conditions of the area the Stand-Up Support can be configured in the way that it is optimally adapted to the needs of each individual user.

It ist available in different versions:

  • with fixed or movable handles
  • with toilet seat or bidet
  • with standalone remote control
  • for free-standing or wall-mounted toilets

Send us your enquiry using the request form and we will send you an offer matching your individual requirements.

Handle variations

Stand-Up Support BC65 - fixed handles

Stand-Up Support BC65 – fixed handles

Stand-Up Support BC65 - movable handles

Stand-Up Support BC65 – movable handles

Weitere

Special options

Compiling your stand up support, your able to select from various additional options such as different toilet seats, toilet bowls and means of control. Ask us, we will help you!

Toilet seat without lid

Toilet seat without lid

toilet seat with vebra air bidet

vebra air bidet

protection against splash water

against splash water

standalone remote control

standalone remote control

Download Section

Brochures, instuction sheets, operating manuals, texts for invitation to tender – to download

To install Acrobat Reader please click here

Information Sheet_Stand-Up Support BC56
